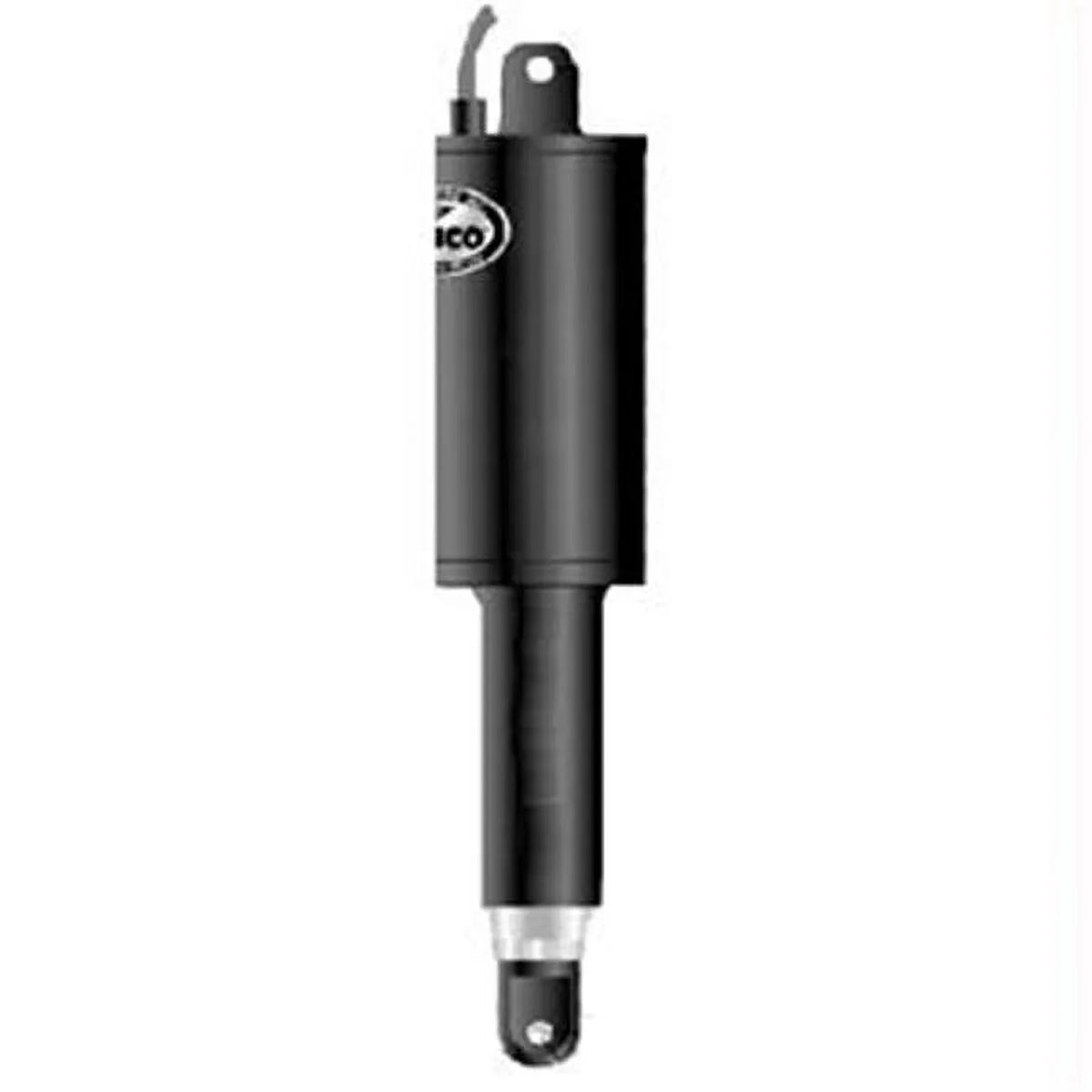

LENCO PARTS 15054-001 LENCO 12V 2 1-4 Inch STROKE ACTUATOR with 6 Foot WIRE

Corrosion proof Vandar cap and mount stands up to severe loads.- SKU: CW29122. High-impact ultraviolet immune nylon 66 50% glass fiber reinforced thermoplastic housing. Tough high-torque motor easily transfers 750 lbs. Precision molded powdered metal high alloy gears provide high accuracy high wear resistance and high strength for long life. Self-locking ballscrew locks into position and will not drift. Ballscrew rotates freely on 12 ball bearings at both ends of its stroke so theres no need for complicated limit switches and clutches. Double O-ring for maximum protection. Stainless steel ram wont flex even under extreme loads. Corrosion proof Vandar mounts. Top cap gland seal sheaths the actuator cable outer jacket as well as both internal conductors for maximum waterproofing. Mounting hardware: 5/16" (.79 cm) or Delrin Pin. Diameter (upper housing): 2-1/2" (6.35 cm). Length pin to pin: 11-1/2" (29.21 cm). Length overall: 12-1/8" (30.80 cm). Stroke: 2-1/4" (5.72 cm). 5/16" (.79 cm) mounting hardware. Included in Standard Trim Tab Kit Standard Performance Tab Kit SeaDoo Kit and Bennett Retrofit Kit. 101 Standard Actuator
